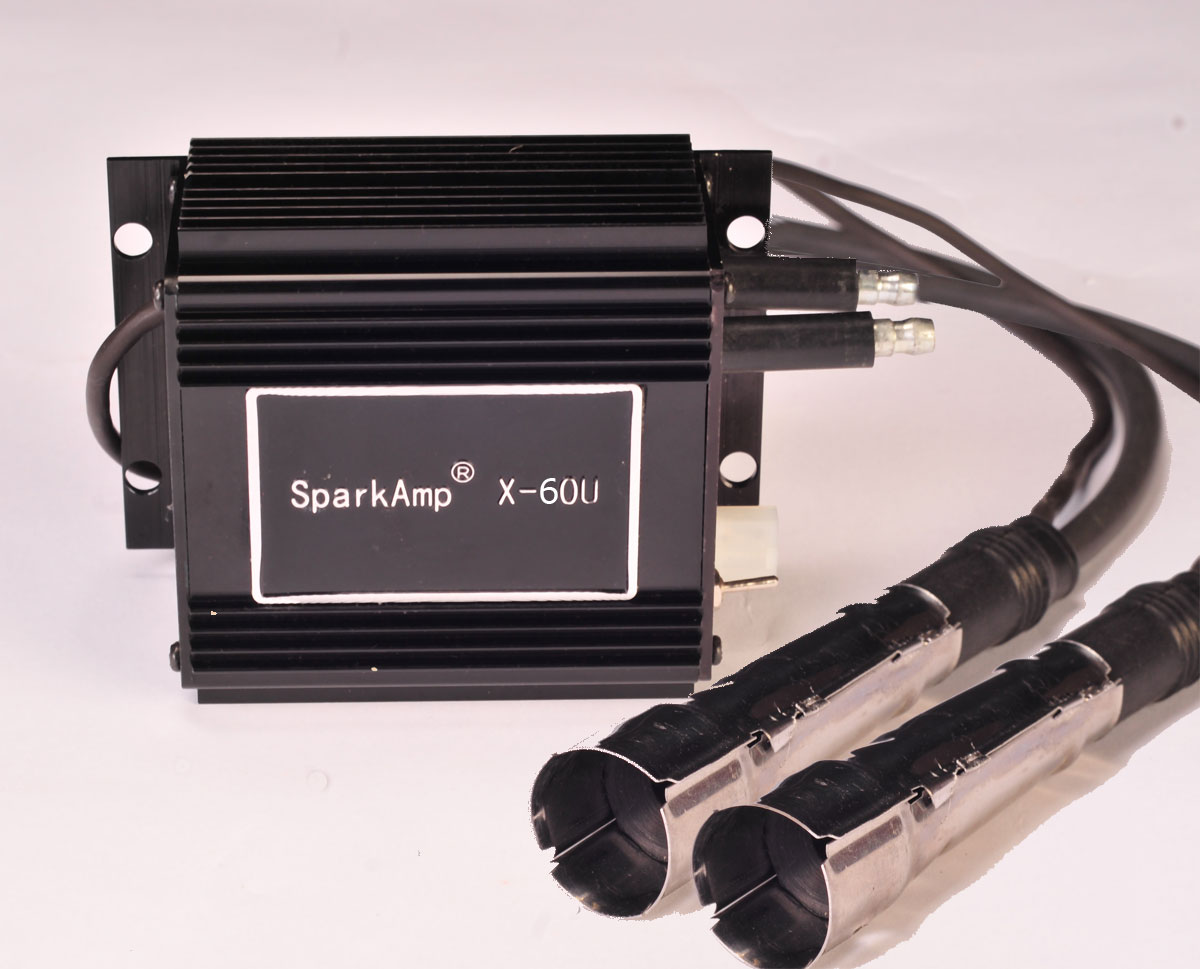

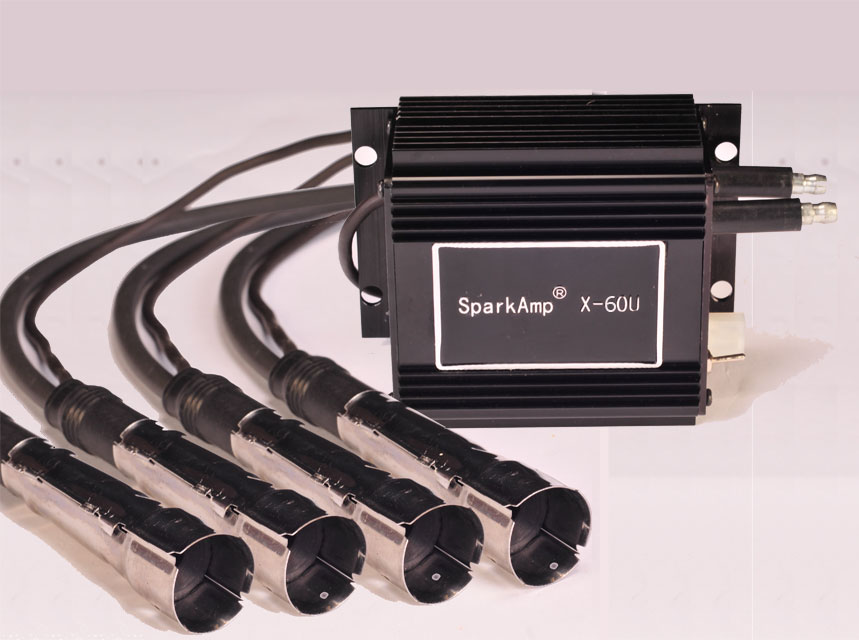

The X60 kits are meant for the majority of automotive applications - from racing, street performance, daily commuters to get maximum fuel economy, experimenters trying different fuel mixs - water injection, ethanol, methanol etc.
| Twin Cylinder Ignition Kit | 4-Cylinder Ignition Kit |
 |
 |
Wiring
Schematic
$439.99
|
Wiring
Schematic
$499.99
|
| 6-Cylinder Ignition Kit | 8-Cylinder Ignition Kit |
 |
 |
Wiring Schematic
$539.99
|
Wiring Schematic
$599.99
|
The x40 kits are meant for speciality applications which run any combination high compression and/or forced induction etc., which require the primary ignition coil voltages to exceed 40kV. The X40U power modules include an additional 40kV of protection circuitry to work with the ultra high voltage discharge coils.
| Twin Cylinder Ignition Kit | 4-Cylinder Ignition Kit |
 |
 |
|
Wiring
Schematic
$459.99
|
Wiring
Schematic
$529.99
|
| 6-Cylinder Ignition Kit | 8-Cylinder Ignition Kit |
 |
 |
RPG
Bypass Wiring Schematic
$569.99
|
RPG
Bypass Wiring Schematic
$619.99
|

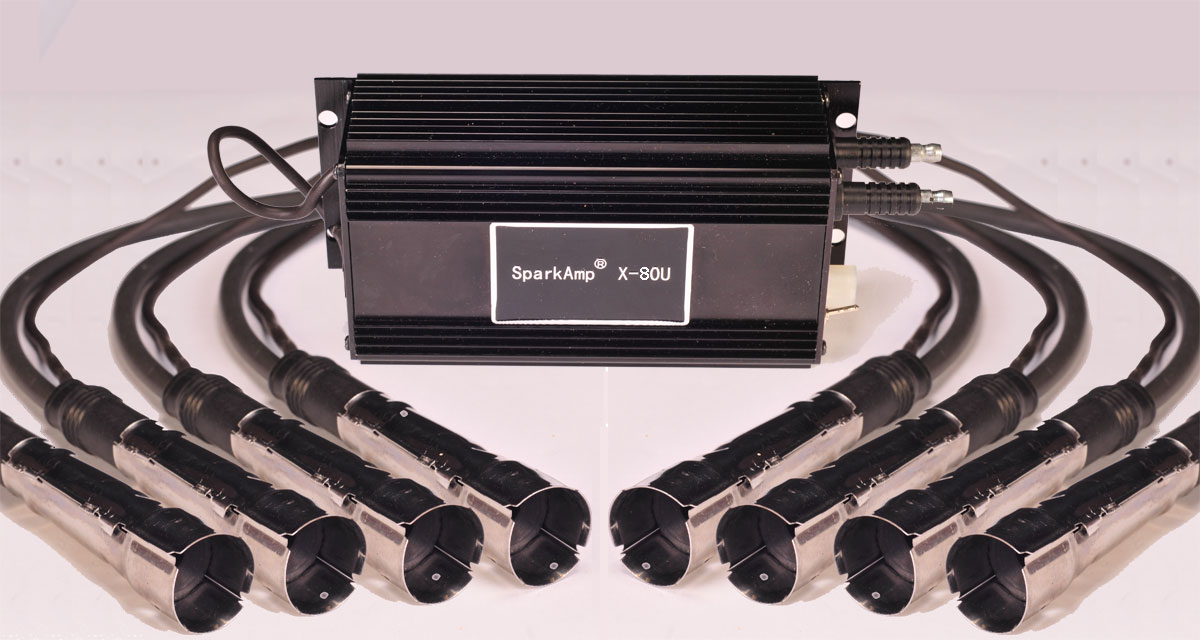

The x80 kits represent uncompromising performance. It has two independent channels that can fire plasma independently, or when the outputs are combined or 'bussed' it can pump a whopping 400 amps of peak power impulse into an ordinary spark - useful if you're igniting water! For high revving race engines, channel 1 can be made to amplify the sparks for the odd firing order cylinders, and channel 2 for the even firing cylinders. This way, the peak power amperage of 200 amps is maintained even at the highest RPMs.
| 6-Cylinder Ignition Kit | 8-Cylinder Ignition Kit |
 |
 |
Wiring Schematic
$639.99
|
RPG
Bypass Wiring Schematic
$699.99
|

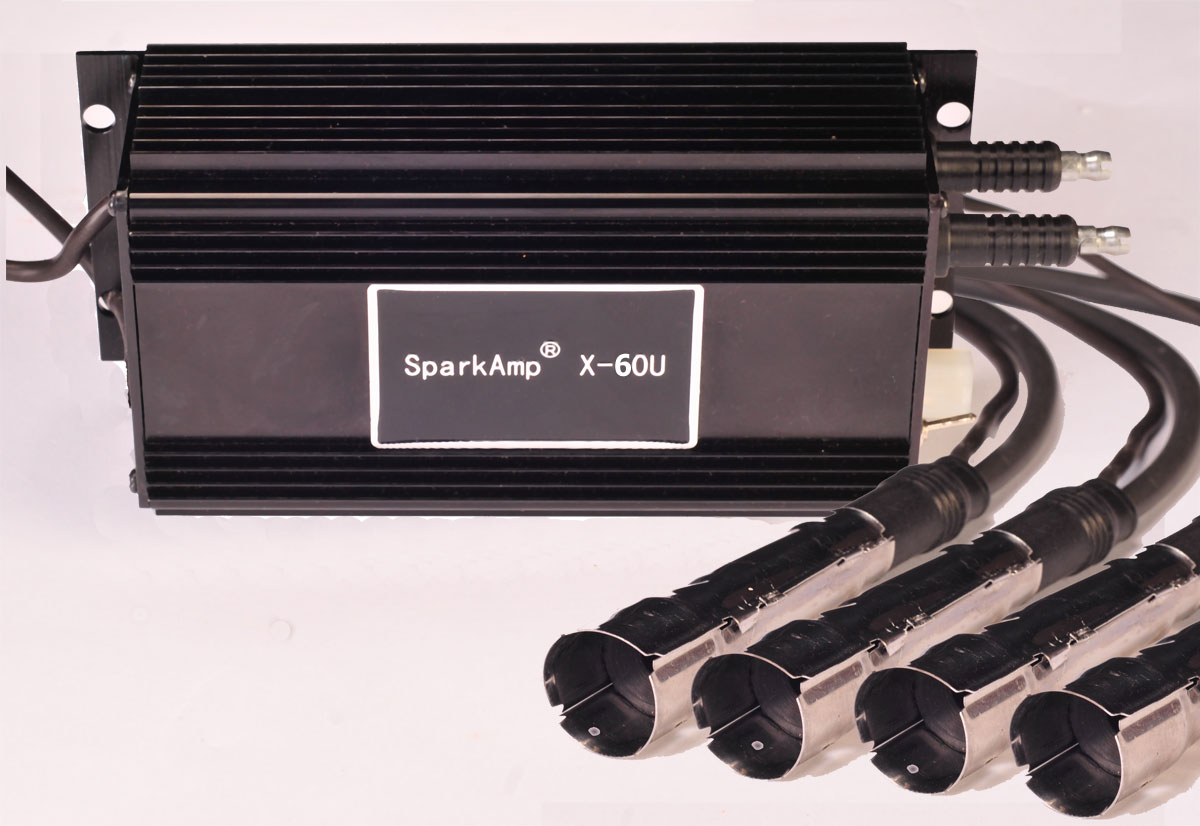

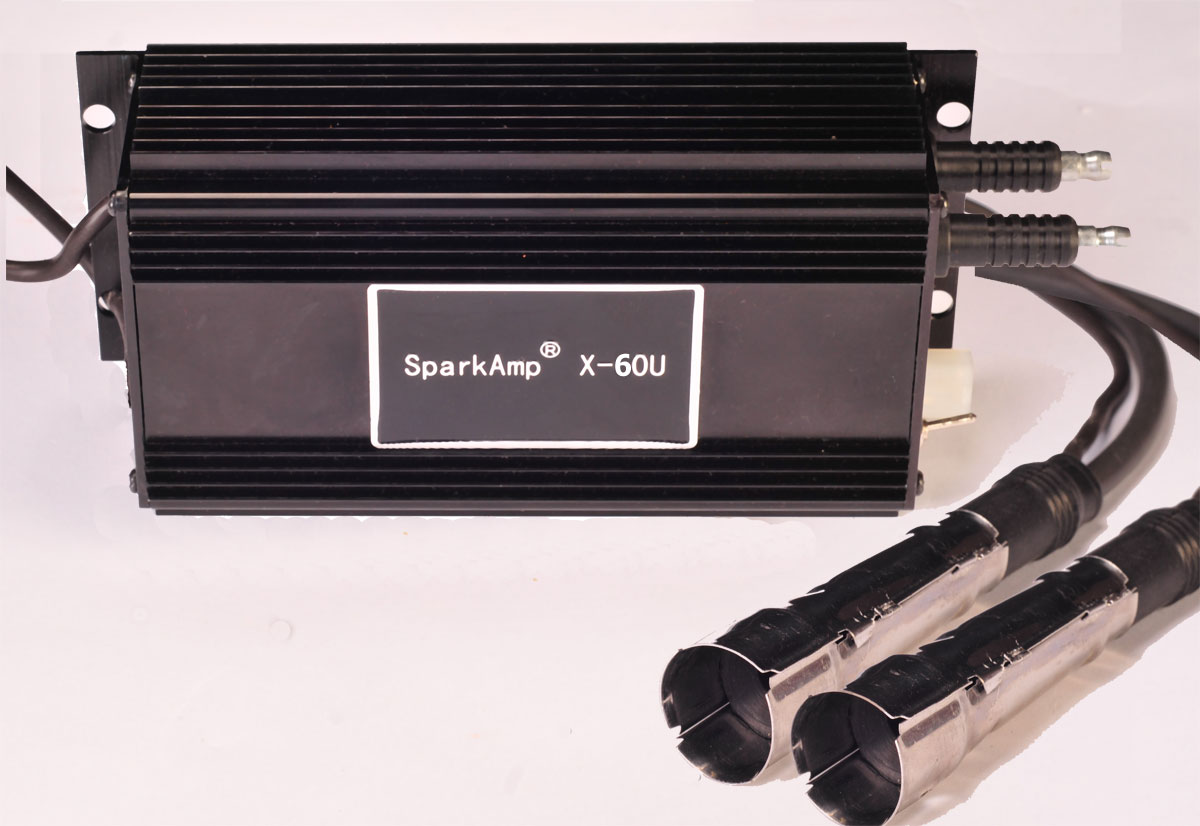

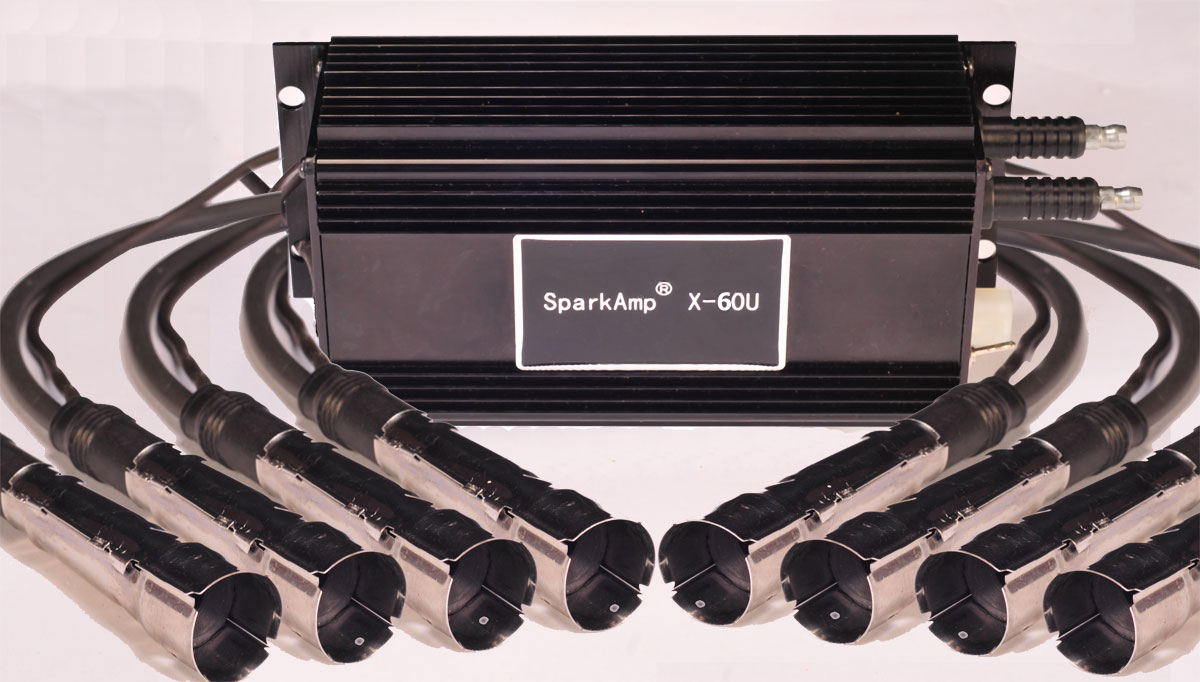

The x60 wastespark kits finally offer a simple way to convert an otherwise intractible ignition system - the wasted spark ignition coil pack, into a high energy plasma ignition system. It has two independent channels that fire plasma simultaneously in two cylinders, one firing a positive spark and one firing a negative spark. The kits include positive and negative ignition cables, which need to be installed carefully as mismatching them can cause the diode circuitry in the cables to fail. Please refer to the manual to determine the polarity of your existing cylinder wires as they are fired by the wastespark coil pack. Having a spark tester and some high voltages diodes is highly recommended.
| 2-Cylinder Waste Spark Ignition Kit | 4-Cylinder Waste Spark Ignition Kit |
 |
 |
Wiring Schematic
$539.99
|
RPG
Bypass Wiring Schematic
RPG
COP Wiring Schematic
$599.99
|
| 6-Cylinder Waste Spark Ignition Kit | 8-Cylinder Waste Spark Ignition Kit |
 |
 |
Radiant Plasma Spark Generator Specification
RPG
Bypass Wiring Schematic
$639.99
|
Plasma Distributor Specification
RPG
Bypass Wiring Schematic
$699.99
|
